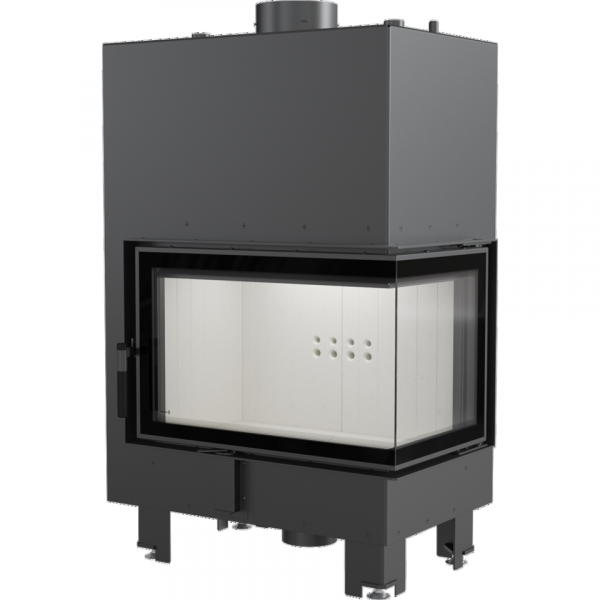

Water fireplace insert MBM 10kW PW right BS

Description

Technical data

[Nbsp]
Nominal power (kW) 10.0
Average power from water (kW) 5.5
Heating power range (kW) 4.0 – 13.0
Thermal efficiency (%) 80.0
Max working pressure (bar) 2.0
The diameter of the exhaust outlet (mm) 200
Intended for recuperation. Yes
Fuel type acceptable brown coal briquette, recommended seasoned   deciduous wood
Weight (kg) 232.0
Water capacity (l) 26.5
CO emission (at 13% O 2) ≤ reported in% 0.10
Flue gas temperature (℃) 217.0
Max log length (cm) 50
Compliance with the BlmSchV 2 standard. Yes
Type of side glazing
Opening the door to the right
Steel material

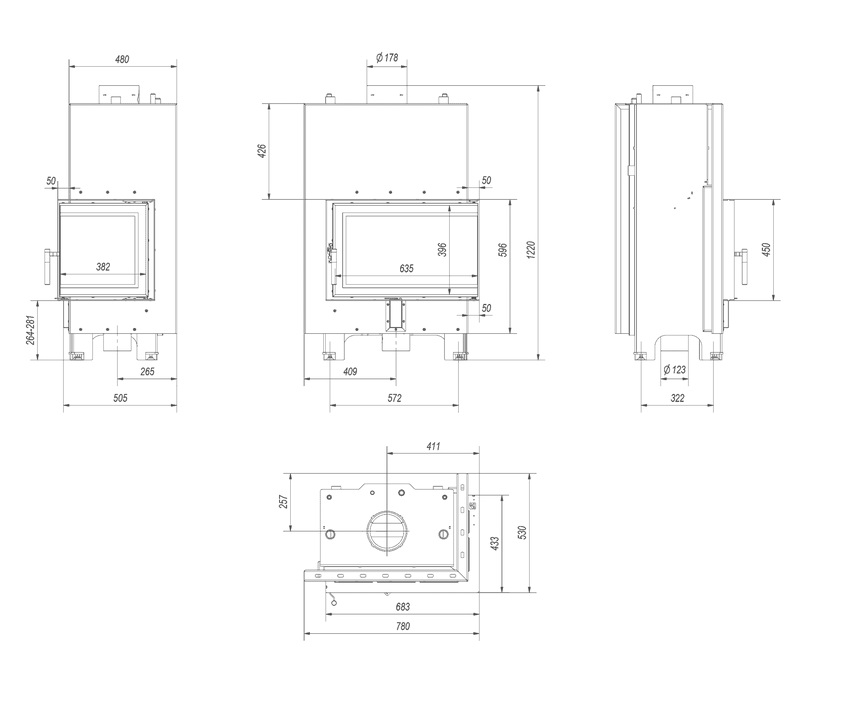

Width (cm) 78
Height (cm) 122.00
Depth (cm) 53
Air intake Yes
Combustion chamber lining Yes
Ashtray No.
Decorative glass pane Yes
Coil Yes
Advantages

MAXIMUM USE OF ENERGY

Made of high quality steel body and front resistant to very high temperatures.

Effective combustion and longer temperature maintenance thanks to the Acumotte combustion chamber liner – a heat accumulating material that   increases the chamber temperature.

A special water jacket assembly allows for taking away from the fumes and transferring a large amount of heat to the heating system, thanks to which it is possible to obtain a high energy efficiency of the cartridge.

Built-in coil. The body of the water jacket is reinforced with pins. In / out port 1/2.

Stable and resistant to tension door fireplace made of a closed profile. The door gasket is located in the contoured channel, which guarantees its proper adhesion and prevents it from falling out during operation.

A system of two deflectors that lengthen the route of combustion, combustion is more ecological.

The supply of air from the outside only thanks to the built-in air intake nozzle   fi 125 mm with an air damper. Adjustment of the air intake with one regulator, which excludes errors in improper use.

Triple ventilation system of the combustion chamber: primary air –   is directed to the plate on which combustion takes place; secondary air is supplied through the holes in the back wall. In addition, the cartridge uses a system of clean glass (air curtain).

[Nbsp]

SAFETY AT THE HIGHEST LEVEL

Excellent tightness due to solid welds made in a noble gas shield.

Steel elements are laser cut using modern devices and then bent on CNC bending machines.

The front of the insert is equipped with heat-resistant ceramics that withstand temperatures up to 800 ° C.

[Nbsp]

COMFORTABLE USE

No-dirt contribution – afterburning, which means that the fuel burns to a small ash, which remains the minimum amount. The wood thermal energy obtained in this way is maximized. The bottom plate of the insert is significantly reduced compared to the door.

Limitation of sooting thanks to the clean windshield system (air guide).

[Nbsp]

MODERN DESIGN

A decorative glass pane withstanding temperatures up to 800 ° C, which gives the fireplace a modern and elegant look, visually enlarges the front of the cartridge.

The door of the cartridge has a modern handle.

Warranty 5 years.
