Fireplace insert NADIA 9

Description

Technical data

Nominal power (kW) 9.0
Heating power range (kW) 5.0 – 11.0
Thermal efficiency (%) 80.0
Diameter of exhaust outlet (mm) 200
Designed for recuperation Yes
Type of fuel allowed brown coal briquettes, recommended hardwood decayed wood
Weight (kg) 128.0
CO emissions (at 13% O 2) ≤ given in% 0.10
Exhaust gas temperature (℃) 251.0
Max length of logs (cm) 32
Compliance with BlmSchV 2 Yes
Minimal required outlet grid (cm2) ≥700
Minimum required field of entry grilles (cm2) ≥500
Type of glazing simple
Opening the door to the left
Steel fabrication

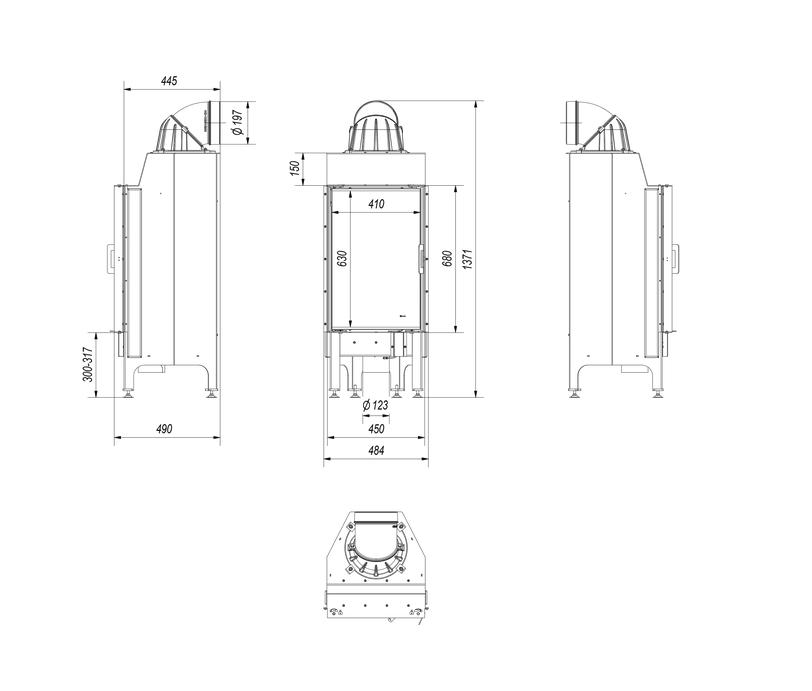

Width (cm) 48,40
Height (cm) 120,00
Depth (cm) 44,50
Air intake Yes
Lining of the combustion chamber Yes
Asphalt No
Decorative glass type glass Yes


Advantages

MAXIMUM ENERGY USE

Body and front of the cartridge resistant to high temperatures thanks to the material used – high quality steel.

Effective combustion and prolonged temperature retention thanks to the incineration of the combustion chamber Acumotte – a heat-accumulating material that   increases the temperature in the chamber.

Burning of fuel particles with a deflector that extends the exhaust path.

Delivering air exclusively from the outside thanks to the built-in air intake   fi 125 mm. Adjustable air intake with one regulator, which eliminates errors in misuse.

The triple combustion chamber ventilation system: primary air –   is directed to the combustion plate; Secondary air is provided with holes in the back wall. In addition, a clean glass system (air curtain) is used in the cartridge.

Clean combustion thanks to the hexagonal furnace chamber

SAFETY AT THE HIGHEST LEVEL

Excellent tightness thanks to solid welds made in a noble gas shield.

Steel parts cut by laser with the use of modern equipment and then bent on CNC bending machines.

The front of the cartridge is equipped with a heat resistant glass that can withstand temperatures up to 800 ° C.

CONVENIENT USE

Scrap-free – Burning on ashes, which means that the fuel burns out to the fine ash, which remains the minimum amount. In this way, the heat generated from the wood is maximized.

Limitation of soot deposition thanks to the system of clean glass (air wheel).

Can be used in various mounting conditions, thanks to adjustable feet and flue gas outlet with adjustable 360 ​​°.

The ability to move the door from the standard right-hand opening to the left.

MODERN DESIGN

Glass decorative glass with a temperature of up to 800 ° C, which gives the fireplace a modern and elegant appearance, optically enlarges the front of the cartridge.

The insert door has a modern slide handle.

Warranty 5 years.
