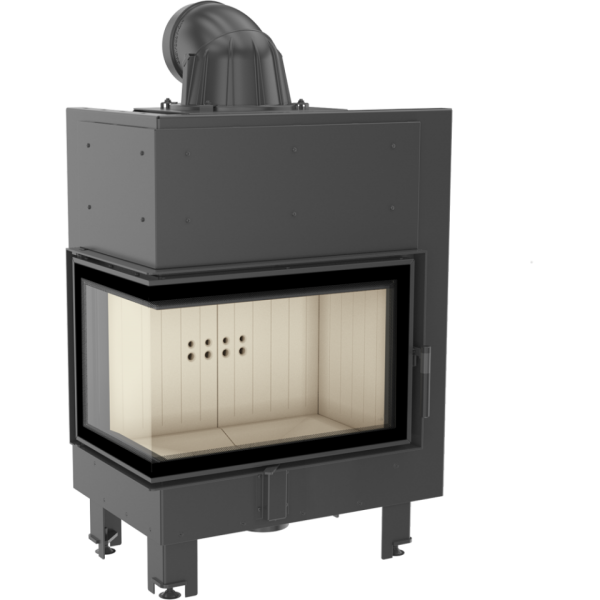

Fireplace insert MBM 10 left BS

Description

Technical data


Nominal power (kW) 10.0
Heating power range (kW) 4.0 – 13.0
Thermal efficiency (%) 81.0
Diameter of exhaust outlet (mm) 200
Designed for recuperation Yes
Type of fuel allowed brown coal briquettes, recommended hardwood decay
Weight (kg) 174.0
CO emissions (at 13% O 2) ≤ given in% 0.10
Exhaust gas temperature (℃) 235.0
Max log length (cm) 50
Emission of pollen (dust) (mg / Nm3) 28.0
Compliance with BlmSchV 2 Yes
Minimal required outlet area (cm2) ≥700
Minimum required field of entry grilles (cm2) ≥500
Type of side glazing
Opening the door to the left
Steel fabrication

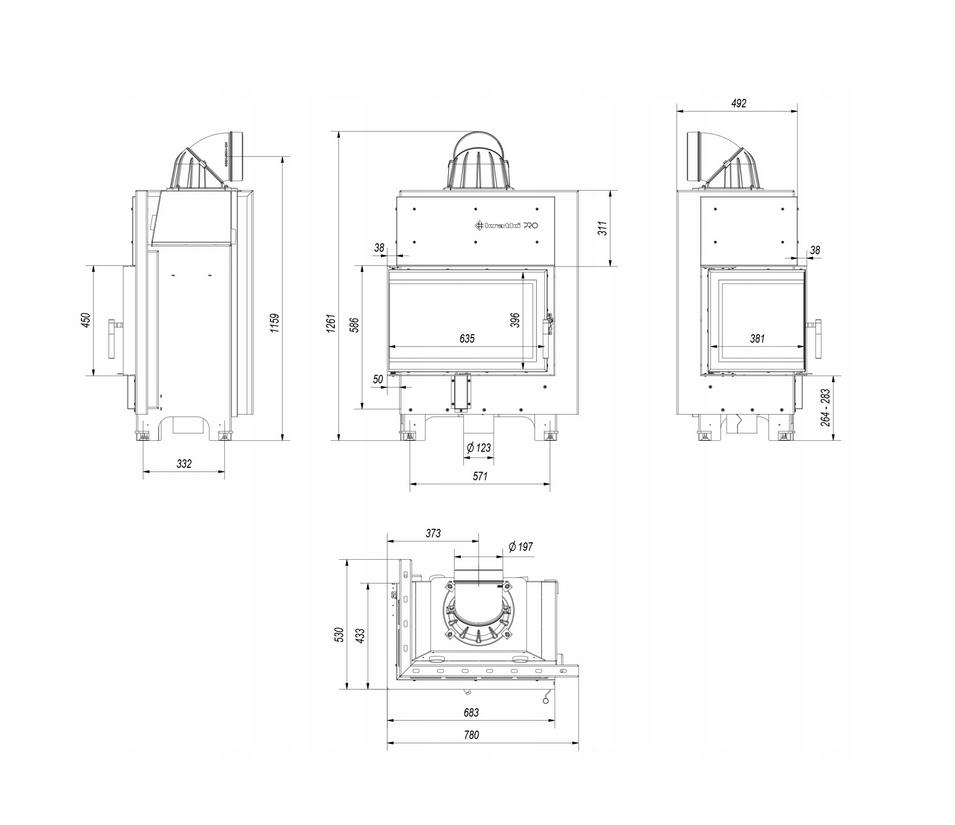

Width (cm) 77.50
Height (cm) 126,10
Depth (cm) 49,20
Air intake Yes
Lining of the combustion chamber Yes
Asphalt No
Decorative glass type glass Yes

Advantages

MAXIMUM ENERGY USE

Made of high quality steel body and high temperature resistant front.

Effective combustion and longer temperature retention thanks to the combustion liner Acumotte – a heat-builing material that increases the temperature in the chamber.

High profile and transversely located flames – increase the heat transfer area between the cartridge and the environment. Reducing the exhaust temperature contributes to increased efficiency.

Sturdy and durable fire doors made of closed profile. The door seal is located in the profiled duct, which guarantees proper adhesion and prevents possible falls during operation.

Burning of fuel particles with a deflector that extends the exhaust path.

Delivering air exclusively from the outside thanks to the built-in air intake   fi 125 mm. Adjustable air intake with one regulator, which eliminates errors in misuse.

Triple system of combustion chamber ventilation: Primary air –   is directed to the combustion plate; Secondary air is provided with holes in the back wall. In addition, a clean glass system (air curtain) is used in the cartridge.

SAFETY AT THE HIGHEST LEVEL

Excellent tightness thanks to solid welds made in a noble gas shield.

Steel parts cut by laser with the use of modern equipment and then bent on CNC bending machines.

Front of the cartridge equipped with heat-resistant ceramics withstand temperatures up to 800 ° C.

CONVENIENT USE

Scrap-free – Burning on ashes, which means that fuel burns out to ash with minimal amount of ash. In this way, the heat generated from the wood is maximized.

Bottom plate of the cartridge significantly lowered against the door.

Limitation of soot deposition thanks to the system of clean glass (air wheel).

MODERN DESIGN

Fireplace insert with two panes stacked at right angles (glazing without glass).

Glass decorative glass withstand temperatures up to 800 ° C, which gives the fireplace a modern and elegant appearance, optically enlarges the front of the cartridge.

Warranty 5 years.
