Nominal power (kW) 6.0 Heating power range (kW) 3.0 – 8.0 Thermal efficiency (%) 80.0 Diameter of exhaust outlet (mm) 160 Designed for recuperation Yes Fuel Type Acceptable brown coal briquette, recommended hardwood decay Weight (kg) 155.0 CO emissions (at 13% O 2) ≤ in% 0.10 Exhaust gas temperature (℃) 255.0 Max length of logs (cm) 35 Emission of pollen (dust) (mg / Nm3) 40.0 Compliance with BlmSchV 2 Yes Minimal Required Field of Exit Grates (cm2) ≥700 Minimum Required Field of Inlet Grates (cm2) ≥500 Type of glazing simple Opening the door left Performance material steel Width (cm) 65.40 Height (cm) 128.20 Depth (cm) 33.50 Air intake Yes Lining of the combustion chamber Yes Ashpan Yes Decorative glass panes Yes Advantages
MAXIMUM ENERGY USE
More efficient combustion and longer temperature retention thanks to the lining of the Acumotte combustion chamber, a heat-absorbing material that increases the temperature in the furnace.
Burning of fuel particles with two deflectors that extend the exhaust path. This process also increases the efficiency of combustion and guarantees a better use of energy and thus minimizes the emission of harmful substances into the atmosphere.
Delivering air to the cartridge is done exclusively from the outside, thanks to the built-in air inlet fi 125 mm. Its adjustment is done with a throttle adjustable by one regulator below the door, which eliminates errors in misuse. The whole mechanism works very quietly and without fail.
The cartridge uses a triple combustion chamber ventilation system. Primary air, which facilitates burning wood, is provided under the grate. Secondary air – providing economical and ecological combustion – is provided with openings in the rear wall.
In addition, the system uses a clean window system (air curtain), that is, air is delivered directly to the glass through the channel system located on the sides of the fireplace. In this way oxygen is supplied to the upper part of the combustion chamber, which burns the gases produced by the combustion process, which further limits the emission of harmful CO to the atmosphere.
The use of such aeration system allows very precise control of the combustion process.
SAFETY AT THE HIGHEST LEVEL
Front of the cartridge equipped with heat-resistant ceramics withstand temperatures up to 800 ° C. Our glass is certified for quality and safety.
Body and front of the cartridge resistant to high temperatures thanks to the use of high quality steel.
Excellent tightness, thanks to solid welds made in a noble gas shield. Steel parts cut by laser with the use of modern equipment and then bent on CNC bending machines.
CONVENIENT USE
A specially profiled bottom plate made of Acumotte is used in the fireplace, which makes the combustion chamber deeper and holds more wood. At the same time a shorter furnace chamber is used, which contributes to the lower power of the cartridge. Thanks to that, it will perfectly work in small size salons.
Removable grate and ash for easy maintenance of the cartridge.
Limited soot deposition occurs thanks to the clean glass system used. The air curtain separates the glass from the hearth. This way it does not get dirty and gives more room to the room.
Ability to compensate for unevenness of the substrate and level of the cartridge thanks to adjustable feet.
The model is equipped with a removable flue outlet so that, when assembled, there is no need to purchase additional knees. It is easy to adjust the insertion angle of the cartridge to the chimney installation.
MODERN DESIGN
A modern panoramic front panel with combustion chamber insert, which makes it ideal for small living rooms with low heating needs. Ideal for energy efficient and passive homes. Modern solutions in the fireplace guarantee energy savings and make the operation and cleaning of the appliance a hassle-free.
It is equipped with a single, glass decorative glass, which makes it looks elegant and modern. Using this solution optically enlarges the front of the cartridge and highlights the vision of the fire.
Fireplace insert LUCY 12 SLIM
6 050,00 zł
Fireplace insert LUCY 12 SLIM
Available on backorder
Description

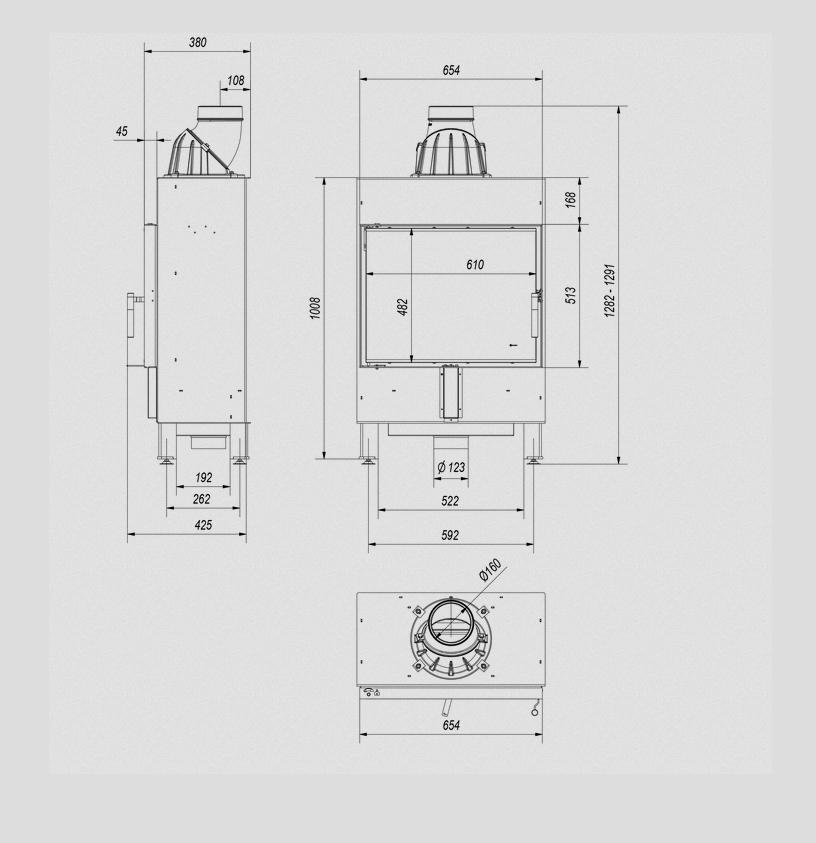

Technical data
Nominal power (kW)
6.0
Heating power range (kW)
3.0 – 8.0
Thermal efficiency (%)
80.0
Diameter of exhaust outlet (mm)
160
Designed for recuperation
Yes
Fuel Type
Acceptable brown coal briquette, recommended hardwood decay
Weight (kg)
155.0
CO emissions (at 13% O 2) ≤ in%
0.10
Exhaust gas temperature (℃)
255.0
Max length of logs (cm)
35
Emission of pollen (dust) (mg / Nm3)
40.0
Compliance with BlmSchV 2
Yes
Minimal Required Field of Exit Grates (cm2)
≥700
Minimum Required Field of Inlet Grates (cm2)
≥500
Type of glazing
simple
Opening the door
left
Performance material
steel
Width (cm)
65.40
Height (cm)
128.20
Depth (cm)
33.50
Air intake
Yes
Lining of the combustion chamber
Yes
Ashpan
Yes
Decorative glass panes
Yes
Advantages
MAXIMUM ENERGY USE
More efficient combustion and longer temperature retention thanks to the lining of the Acumotte combustion chamber, a heat-absorbing material that increases the temperature in the furnace.
Burning of fuel particles with two deflectors that extend the exhaust path. This process also increases the efficiency of combustion and guarantees a better use of energy and thus minimizes the emission of harmful substances into the atmosphere.
Delivering air to the cartridge is done exclusively from the outside, thanks to the built-in air inlet fi 125 mm. Its adjustment is done with a throttle adjustable by one regulator below the door, which eliminates errors in misuse. The whole mechanism works very quietly and without fail.
The cartridge uses a triple combustion chamber ventilation system. Primary air, which facilitates burning wood, is provided under the grate. Secondary air – providing economical and ecological combustion – is provided with openings in the rear wall.
In addition, the system uses a clean window system (air curtain), that is, air is delivered directly to the glass through the channel system located on the sides of the fireplace. In this way oxygen is supplied to the upper part of the combustion chamber, which burns the gases produced by the combustion process, which further limits the emission of harmful CO to the atmosphere.
The use of such aeration system allows very precise control of the combustion process.
SAFETY AT THE HIGHEST LEVEL
Front of the cartridge equipped with heat-resistant ceramics withstand temperatures up to 800 ° C. Our glass is certified for quality and safety.
Body and front of the cartridge resistant to high temperatures thanks to the use of high quality steel.
Excellent tightness, thanks to solid welds made in a noble gas shield. Steel parts cut by laser with the use of modern equipment and then bent on CNC bending machines.
CONVENIENT USE
A specially profiled bottom plate made of Acumotte is used in the fireplace, which makes the combustion chamber deeper and holds more wood. At the same time a shorter furnace chamber is used, which contributes to the lower power of the cartridge. Thanks to that, it will perfectly work in small size salons.
Removable grate and ash for easy maintenance of the cartridge.
Limited soot deposition occurs thanks to the clean glass system used. The air curtain separates the glass from the hearth. This way it does not get dirty and gives more room to the room.
Ability to compensate for unevenness of the substrate and level of the cartridge thanks to adjustable feet.
The model is equipped with a removable flue outlet so that, when assembled, there is no need to purchase additional knees. It is easy to adjust the insertion angle of the cartridge to the chimney installation.
MODERN DESIGN
A modern panoramic front panel with combustion chamber insert, which makes it ideal for small living rooms with low heating needs. Ideal for energy efficient and passive homes. Modern solutions in the fireplace guarantee energy savings and make the operation and cleaning of the appliance a hassle-free.
It is equipped with a single, glass decorative glass, which makes it looks elegant and modern. Using this solution optically enlarges the front of the cartridge and highlights the vision of the fire.
The cartridge door has a comfortable handle.
Warranty 5 years.
