Nominal power (kW) 14.0 Heating power range (kW) 6.0 – 17.0 Thermal efficiency (%) 81.0 Diameter of exhaust outlet (mm) 200 Designed for recuperation Yes Type of fuel allowed brown coal briquettes, recommended seasoned hardwood Weight (kg) 182.0 CO emissions (at 13% O 2) ≤ given in% 0.10 Exhaust gas temperature (℃) 265.0 Max length of logs (cm) 40 Emission of pollen (dust) (mg / Nm3) 18.0 Compliance with BlmSchV 2 Yes Minimal required outlet area (cm2) ≥900 Minimum Required Field of Inlet Grilles (cm2) ≥700 Type of glazing simple Opening the door to the left Steel fabrication Width (cm) 85,40 Height (cm) 120.03 Depth (cm) 42,00 Air intake Yes Lining of the combustion chamber Yes Asphalt Yes Decorative glass type glass Yes
Advantages MAXIMUM ENERGY USE
Maximum use of heat thanks to the densely distributed radiators and the furnace walls made of high quality cast iron 8 mm thick.
Burning of fuel particles with a deflector that extends the exhaust path.
Triple combustion chamber ventilation system: primary air – provided under the grate; Secondary air is provided with holes in the back wall. In addition, a clean glass system (air curtain) is used in the cartridge.
Manual control of the combustion process through the ash pan.
Delivering air exclusively from the outside thanks to the built-in air intake fi 125 mm.
SAFETY AT THE HIGHEST LEVEL
An ornamental fence helps to maintain cleanliness and protects against falling out of wood.
CONVENIENT USE
Large combustion chamber, which allows you to load a large amount of fuel at one time without having to use it frequently.
Limitation of soot deposition thanks to the system of clean glass (air wheel).
Movable, two-piece cast iron exhaust outlet with adjustable 360 °, can be directed both rearward and upward.
Movable two-piece cast iron grate.
MODERN DESIGN
Decorative glass panes with a temperature of up to 800 ° C, which gives the fireplace a modern and elegant appearance, optically enlarges the front of the cartridge.

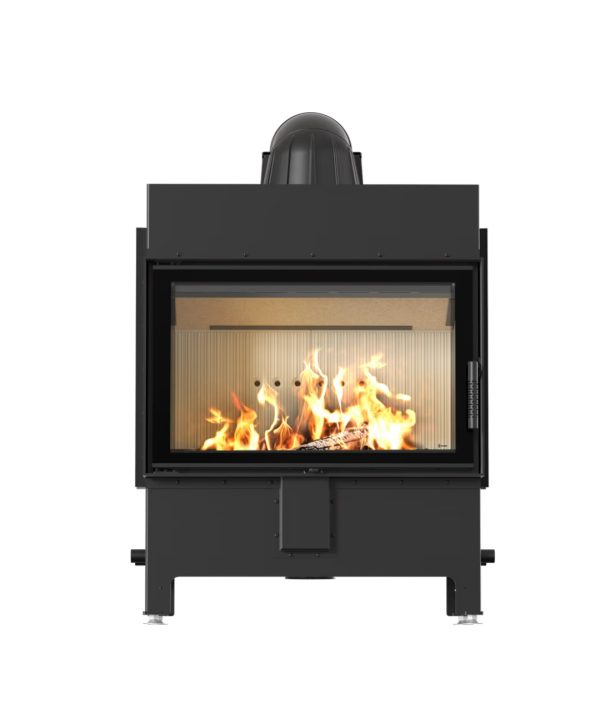

Fireplace insert LUCY 14
7 230,00 zł
Fireplace insert LUCY 14
Available on backorder
Description
Technical data
Nominal power (kW) 14.0
Heating power range (kW) 6.0 – 17.0
Thermal efficiency (%) 81.0
Diameter of exhaust outlet (mm) 200
Designed for recuperation Yes
Type of fuel allowed brown coal briquettes, recommended seasoned hardwood
Weight (kg) 182.0
CO emissions (at 13% O 2) ≤ given in% 0.10
Exhaust gas temperature (℃) 265.0
Max length of logs (cm) 40
Emission of pollen (dust) (mg / Nm3) 18.0
Compliance with BlmSchV 2 Yes
Minimal required outlet area (cm2) ≥900
Minimum Required Field of Inlet Grilles (cm2) ≥700
Type of glazing simple
Opening the door to the left
Steel fabrication

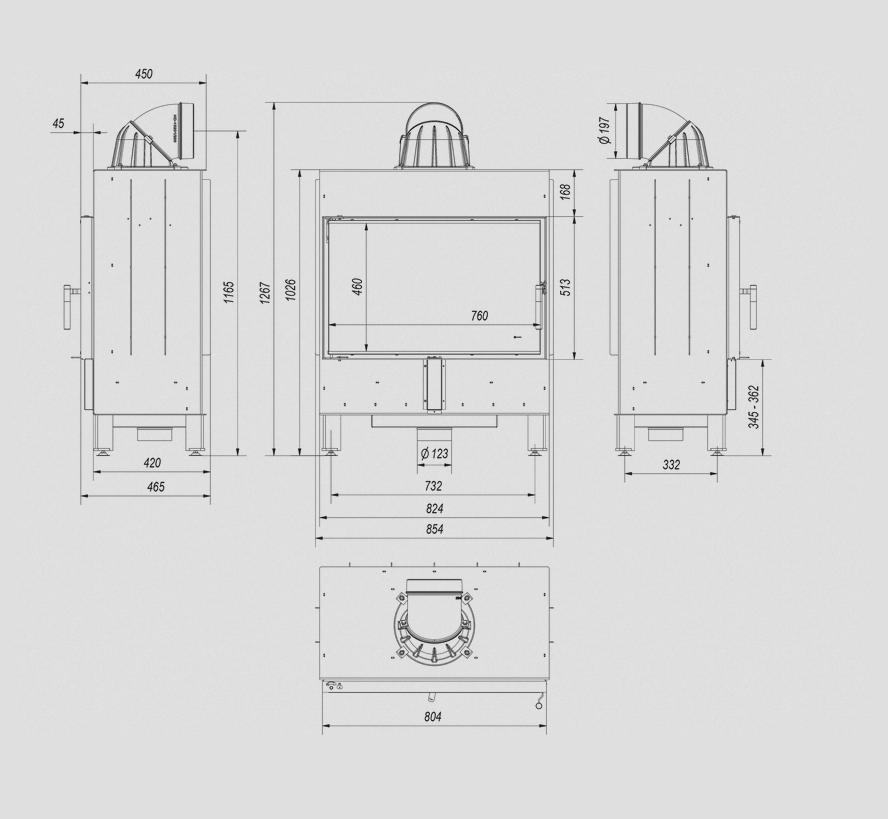

Width (cm) 85,40
Height (cm) 120.03
Depth (cm) 42,00
Air intake Yes
Lining of the combustion chamber Yes
Asphalt Yes
Decorative glass type glass Yes
Advantages
MAXIMUM ENERGY USE
Maximum use of heat thanks to the densely distributed radiators and the furnace walls made of high quality cast iron 8 mm thick.
Burning of fuel particles with a deflector that extends the exhaust path.
Triple combustion chamber ventilation system: primary air – provided under the grate; Secondary air is provided with holes in the back wall. In addition, a clean glass system (air curtain) is used in the cartridge.
Manual control of the combustion process through the ash pan.
Delivering air exclusively from the outside thanks to the built-in air intake fi 125 mm.
SAFETY AT THE HIGHEST LEVEL
An ornamental fence helps to maintain cleanliness and protects against falling out of wood.
CONVENIENT USE
Large combustion chamber, which allows you to load a large amount of fuel at one time without having to use it frequently.
Limitation of soot deposition thanks to the system of clean glass (air wheel).
Movable, two-piece cast iron exhaust outlet with adjustable 360 °, can be directed both rearward and upward.
Movable two-piece cast iron grate.
MODERN DESIGN
Decorative glass panes with a temperature of up to 800 ° C, which gives the fireplace a modern and elegant appearance, optically enlarges the front of the cartridge.
Warranty 5.
