NameVolcano 3PLUh
Door Dimension450x680 / 510 mm
Nominal power 14 kW
Heating range 5,5 – 18 kW
Instantaneous efficiency of 90%
Average efficiency84%
CO 1 g / m3 emission
Dust emission 0.028 g / m3
Flue gas temperature260 degrees Celsius
Flue gas outlet 200 mm
Air intake 150 mm
Type of hardwood, sawdust briquettes
Logs length 50 cm
Nominal loading of 5.6 kg
Fuel consumption3.7 kg / h
Konstrukcjastalowo-Fireclay
Weight of 265 kg
Advantages of HAJDUK fireplace inserts:
Modern double-walled steel-chamotte construction has been proven for many years – a fireplace for many years
The cartridge is durable and solidly welded to the body, without the use of sealing materials and screws. Welding robots are used, the welding is made of noble gas. – The welds are of good quality and tight. – Safety in everyday use.
Structural elements are cut with 2D and 3D laser cutters and then machined by CNC edge and bending machines, including bent in robotic bending cell, mechanical elements made on modern CNC machining center – precision production at Hajduk – Polish manufacturer of European grade Premium
Hajduk fireplace inserts are painted on the technological line of painting: shot blasting, robot painting and drying – the latest technology for the highest quality products
Heat resistant glass panes with a temperature rating of up to 800 ° C, depending on the model of the cartridge can be used double glass or pyrolysis panes
Flame tube passing through an exceptionally high combustion chamber, for extra recovery of hot air from the exhaust – increased heat recovery and savings on a daily basis
Air intake and distribution system from the outside of the Jet Stream Superior with two combustion regulators, primary air through the ash and secondary air in the upper rear of the furnace. Primary air facilitates firing of the first and subsequent wood loading, secondary air provides economical and ecological combustion – very precise control of the combustion process
Clear View Window Cleaning System – helps keep the window clean
Door opening mechanism CLING – lightweight and precise operation of the mechanism ensures high operating comfort
CLING cartridges are equipped with a inspection opening available from the inside of the furnace to facilitate service activities without the need to destroy often very expensive fireplace enclosures – no additional costs for failure
The first two vermiculite for raising the temperature in the furnace, the second steel for extending the exhaust flow, the high efficiency instantaneous and average up to 90% depending on the model – saving fuel wood and environmental protection
Fireplace lined with chamotte panels 50 mm thick on the walls and 65 mm on the bottom (not lined with concrete) – temperature stabilization in the room – high thermal comfort
High mass of the fireplace insert – large heat accumulation – durability for many years
The bottom of the hearth is properly lowered to the door – it provides space for loading wood and ash – comfort for the user
Large removable ash tray in the form of a bucket – convenient operation
The rigid door frame design also features an overhang of the door, a gasket placed in the door leaf – long service life, correct adhesion and tightness of the door when operating at very high temperatures
Brushed steel railing in doors with doors that open up – elegance and modern style
Ergonomic door handle with adjustable clamping force – self-adjusting clamping force – easy maintenance
Heat sinks on the sides and back of the cartridge – stiffening of the structure and increased heat exchange surface – durability and efficiency at an increased level
Feet and bolts for insertion and leveling of unevenness of the substrate, junction box for connection of combustion air from the outside of the building –
The choice of the most appropriate decorative accessories – individual selection for the interior
Hajduk fireplace inserts are suitable for homes with recuperation – the efficiency of modern construction
Certificates of compliance with the European Standard EN 13229, BImSchV exemption second threshold required from 2015 for Germany, Article 15A for Austria threshold from 2015 and LRV for Switzerland, giving the right to sell Hajduk products throughout Europe

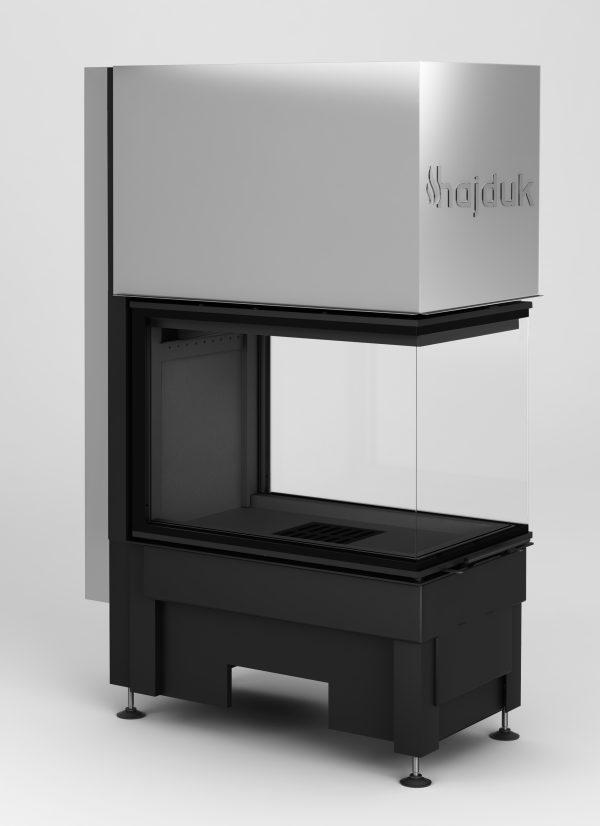

Fireplace insert Hajduk Volcano 3PLUh black chamotte
22 185,00 zł
Fireplace insert Hajduk Volcano 3PLUh
Available on backorder
Description
Technical parameters
NameVolcano 3PLUh
Door Dimension450x680 / 510 mm
Nominal power 14 kW
Heating range 5,5 – 18 kW
Instantaneous efficiency of 90%
Average efficiency84%
CO 1 g / m3 emission
Dust emission 0.028 g / m3
Flue gas temperature260 degrees Celsius
Flue gas outlet 200 mm
Air intake 150 mm
Type of hardwood, sawdust briquettes
Logs length 50 cm
Nominal loading of 5.6 kg
Fuel consumption3.7 kg / h
Konstrukcjastalowo-Fireclay
Weight of 265 kg
Advantages of HAJDUK fireplace inserts:
Modern double-walled steel-chamotte construction has been proven for many years – a fireplace for many years
The cartridge is durable and solidly welded to the body, without the use of sealing materials and screws. Welding robots are used, the welding is made of noble gas. – The welds are of good quality and tight. – Safety in everyday use.
Structural elements are cut with 2D and 3D laser cutters and then machined by CNC edge and bending machines, including bent in robotic bending cell, mechanical elements made on modern CNC machining center – precision production at Hajduk – Polish manufacturer of European grade Premium
Hajduk fireplace inserts are painted on the technological line of painting: shot blasting, robot painting and drying – the latest technology for the highest quality products
Heat resistant glass panes with a temperature rating of up to 800 ° C, depending on the model of the cartridge can be used double glass or pyrolysis panes
Flame tube passing through an exceptionally high combustion chamber, for extra recovery of hot air from the exhaust – increased heat recovery and savings on a daily basis
Air intake and distribution system from the outside of the Jet Stream Superior with two combustion regulators, primary air through the ash and secondary air in the upper rear of the furnace. Primary air facilitates firing of the first and subsequent wood loading, secondary air provides economical and ecological combustion – very precise control of the combustion process
Clear View Window Cleaning System – helps keep the window clean
Door opening mechanism CLING – lightweight and precise operation of the mechanism ensures high operating comfort
CLING cartridges are equipped with a inspection opening available from the inside of the furnace to facilitate service activities without the need to destroy often very expensive fireplace enclosures – no additional costs for failure
The first two vermiculite for raising the temperature in the furnace, the second steel for extending the exhaust flow, the high efficiency instantaneous and average up to 90% depending on the model – saving fuel wood and environmental protection
Fireplace lined with chamotte panels 50 mm thick on the walls and 65 mm on the bottom (not lined with concrete) – temperature stabilization in the room – high thermal comfort
High mass of the fireplace insert – large heat accumulation – durability for many years
The bottom of the hearth is properly lowered to the door – it provides space for loading wood and ash – comfort for the user
Large removable ash tray in the form of a bucket – convenient operation
The rigid door frame design also features an overhang of the door, a gasket placed in the door leaf – long service life, correct adhesion and tightness of the door when operating at very high temperatures
Brushed steel railing in doors with doors that open up – elegance and modern style
Ergonomic door handle with adjustable clamping force – self-adjusting clamping force – easy maintenance
Heat sinks on the sides and back of the cartridge – stiffening of the structure and increased heat exchange surface – durability and efficiency at an increased level
Feet and bolts for insertion and leveling of unevenness of the substrate, junction box for connection of combustion air from the outside of the building –
The choice of the most appropriate decorative accessories – individual selection for the interior
Hajduk fireplace inserts are suitable for homes with recuperation – the efficiency of modern construction
Certificates of compliance with the European Standard EN 13229, BImSchV exemption second threshold required from 2015 for Germany, Article 15A for Austria threshold from 2015 and LRV for Switzerland, giving the right to sell Hajduk products throughout Europe
Additional information
wood
Hajduk
air
three side glass
