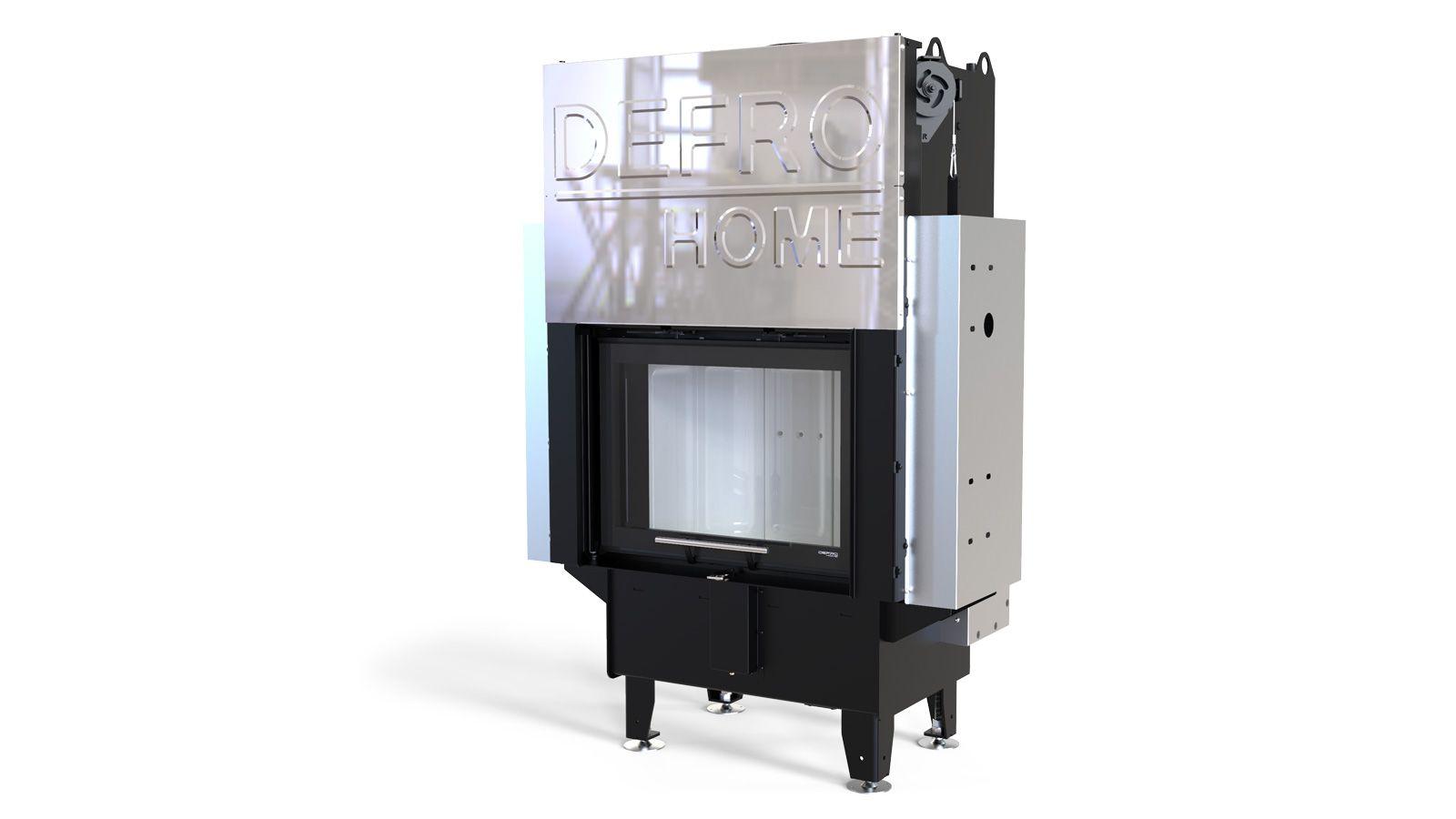

Fireplace insert with a water jacket DEFRO RIVA SM G SHORT 16kW

Description

The RIVA water cartridge series is designed for intensive smoking. The water jacket technology used in them uses the heat that the fireplace gives us, heating the water and redirecting it to the use of central heating. Due to the seasonality of the use of the fireplace, Riva water cartridges work with other heat sources, such as boilers, stoves, boilers, solar systems, heat pumps, etc. Therefore, the Riva series with a water jacket creates economic and ecological contributions with high efficiency. The design of the cartridge based on the water unit only in the upper part of the cartridge guarantees excellent comfort of smoking.
Nominal power; 16 kW
Energy efficiency class; A +
Maximum working pressure; 2.0 bar
Flue diameter; 200 mm
Heated surface; 70-230 m2
Efficiency; 88%
CO emissions at 13% O2; 0.1%
Flue gas temperature; 192 ° C
Chimney draft; 12 ± 2 Pa
Maximum length of logs; 500 mm
Air intake diameter; 125 mm
Warranty; 5 years
Weight; ~ 308 kg
