The RIVA water cartridge series is suitable for intensive smoking. The water jacket technology used in them uses the heat that the fireplace gives us, heating the water and redirecting it to the use of central heating. Due to the seasonality of the period of using the fireplace, Riva water cartridges cooperate with other heat sources, such as: boilers, stoves, boilers, solar systems, heat pumps, etc. That is why Riva series with a water jacket create economical and ecological contributions of high efficiency. The design of the cartridge based on the water unit only in the upper part of the cartridge guarantees excellent smoking comfort.
Nominal power ~ 16 kW
Power range ~ 11-19 kW
Diameter of the smoke pipe 200 mm
Efficiency ~ 88%
CO emission at 13% O2 0.1%
Flue gas temperature ~ 192 ° C
Area of heated rooms, 60-220 m2
Guarantee; 5 years
Weight ~ 265 kg
Maximum log length; 500 mm
Power from water; ~ 8-12 kW
Water jacket capacity ~ 45 l
The diameter of the air intake; 125 mm

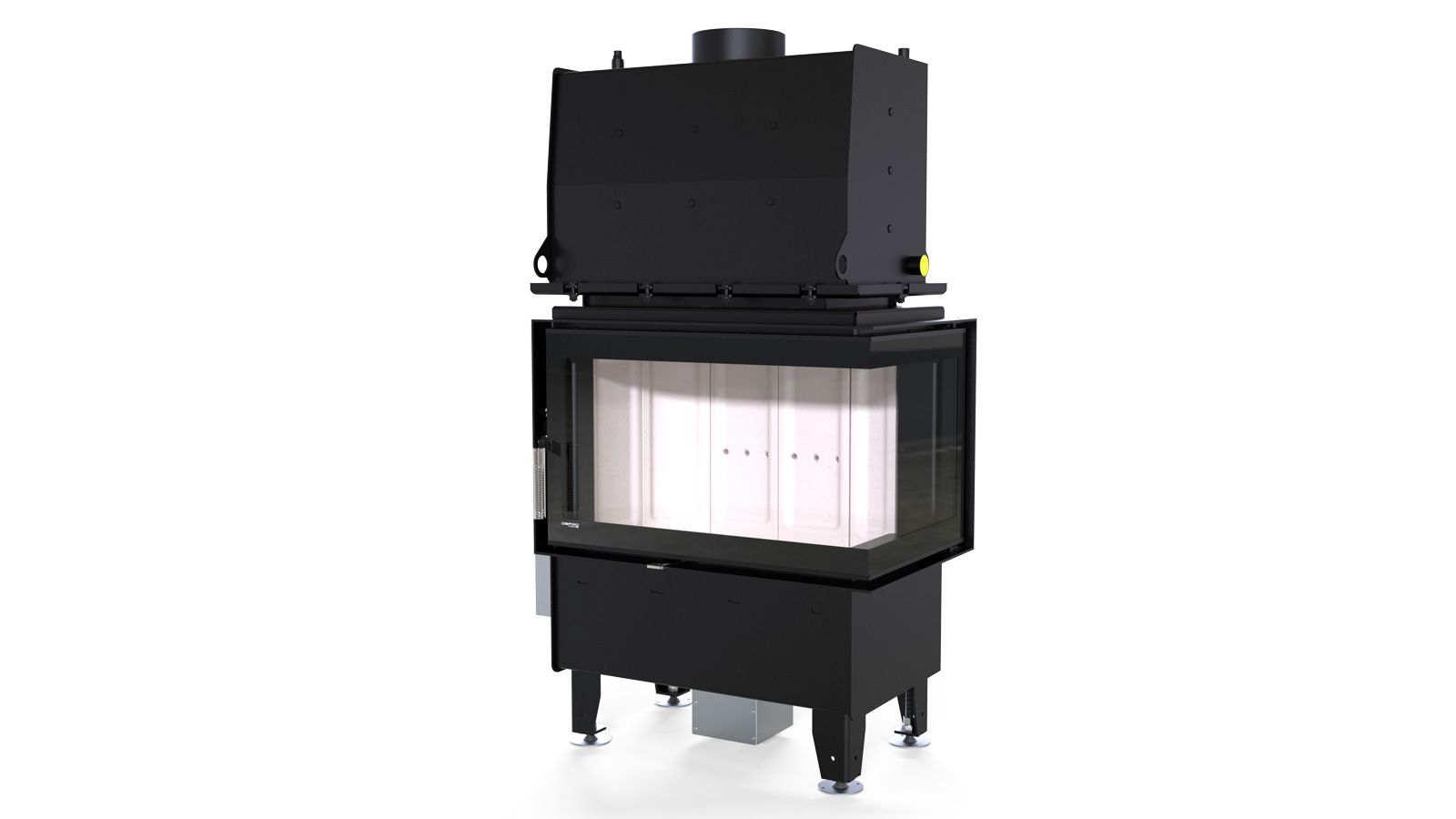

Fireplace insert with a water jacket DEFRO RIVA SM BP SHORT 16kW
12 320,00 zł
Description
The RIVA water cartridge series is suitable for intensive smoking. The water jacket technology used in them uses the heat that the fireplace gives us, heating the water and redirecting it to the use of central heating. Due to the seasonality of the period of using the fireplace, Riva water cartridges cooperate with other heat sources, such as: boilers, stoves, boilers, solar systems, heat pumps, etc. That is why Riva series with a water jacket create economical and ecological contributions of high efficiency. The design of the cartridge based on the water unit only in the upper part of the cartridge guarantees excellent smoking comfort.
Nominal power ~ 16 kW
Power range ~ 11-19 kW
Diameter of the smoke pipe 200 mm
Efficiency ~ 88%
CO emission at 13% O2 0.1%
Flue gas temperature ~ 192 ° C
Area of heated rooms, 60-220 m2
Guarantee; 5 years
Weight ~ 265 kg
Maximum log length; 500 mm
Power from water; ~ 8-12 kW
Water jacket capacity ~ 45 l
The diameter of the air intake; 125 mm
Additional information
Defro
water
wood
corner glass
