The RIVA water cartridge series is designed for intensive smoking. The water jacket technology used in them uses the heat that the fireplace gives us, heating the water and redirecting it to the use of central heating. Due to the seasonality of the use of the fireplace, Riva water cartridges work with other heat sources, such as boilers, stoves, boilers, solar systems, heat pumps, etc. Therefore, the Riva series with a water jacket creates economic and ecological contributions with high efficiency. The design of the cartridge based on the water unit only in the upper part of the cartridge guarantees excellent comfort of smoking.
Nominal power ~ 19 kW
Power range ~ 13-21 kW
Flue diameter; 200 mm
Efficiency ~ 81%
CO emissions at 13% O2; 0.07%
Flue gas temperature ~ 274 ° C
Area of heated rooms; 80-270 m2
Warranty; 5 years
Maximum length of logs; 700 mm
Power from water ~ 9-14 kW
Chimney draft 12 ± 2 Pa
Water jacket capacity ~ 55 l
Air intake diameter; 125 mm
Weight ~ 354 kg

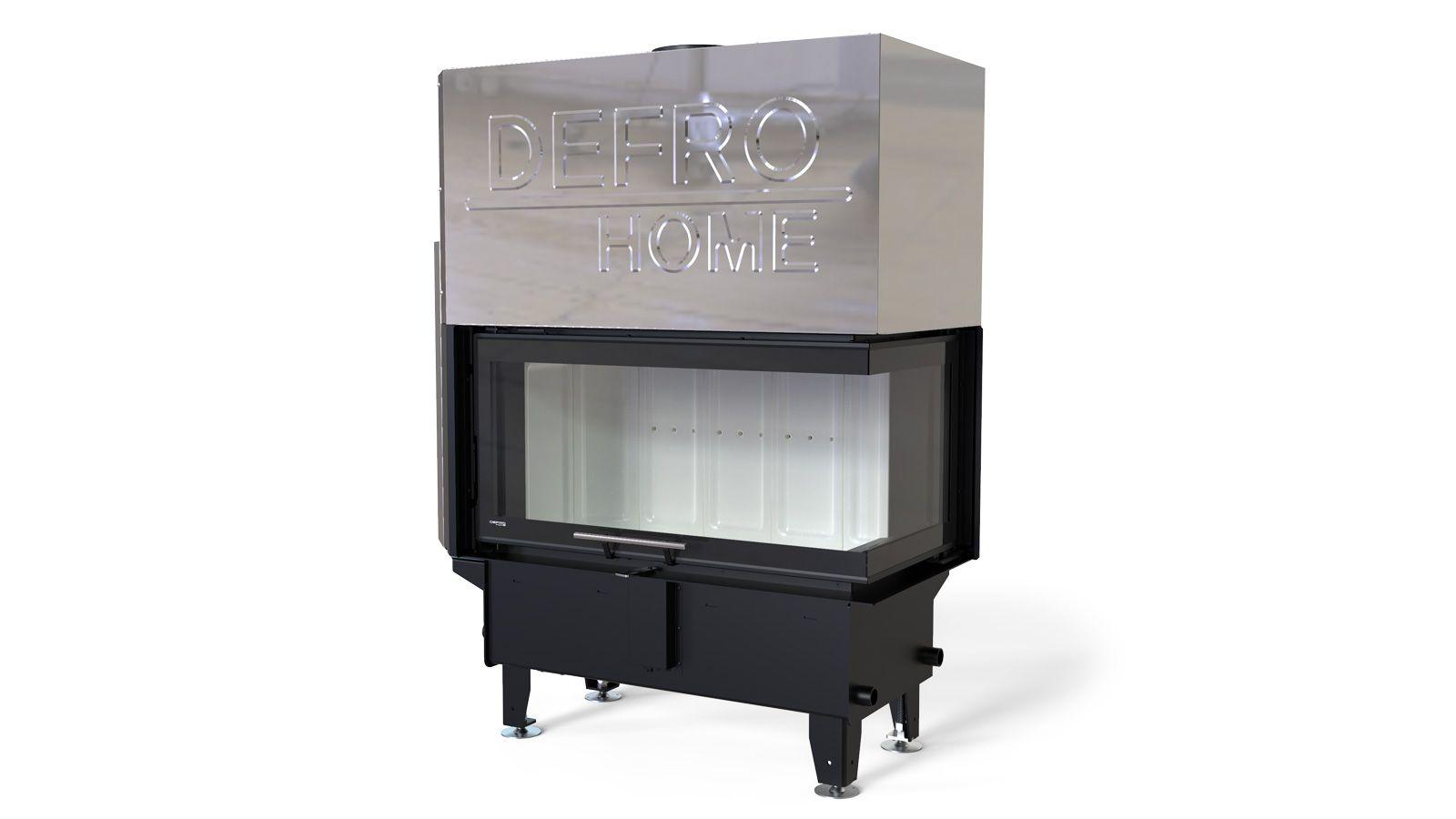

Fireplace insert with a water jacket DEFRO RIVA ME BP G SHORT 19kW
4,812.00€
Available on backorder
Description
The RIVA water cartridge series is designed for intensive smoking. The water jacket technology used in them uses the heat that the fireplace gives us, heating the water and redirecting it to the use of central heating. Due to the seasonality of the use of the fireplace, Riva water cartridges work with other heat sources, such as boilers, stoves, boilers, solar systems, heat pumps, etc. Therefore, the Riva series with a water jacket creates economic and ecological contributions with high efficiency. The design of the cartridge based on the water unit only in the upper part of the cartridge guarantees excellent comfort of smoking.
Nominal power ~ 19 kW
Power range ~ 13-21 kW
Flue diameter; 200 mm
Efficiency ~ 81%
CO emissions at 13% O2; 0.07%
Flue gas temperature ~ 274 ° C
Area of heated rooms; 80-270 m2
Warranty; 5 years
Maximum length of logs; 700 mm
Power from water ~ 9-14 kW
Chimney draft 12 ± 2 Pa
Water jacket capacity ~ 55 l
Air intake diameter; 125 mm
Weight ~ 354 kg
Additional information
Defro
water
wood
corner glass
