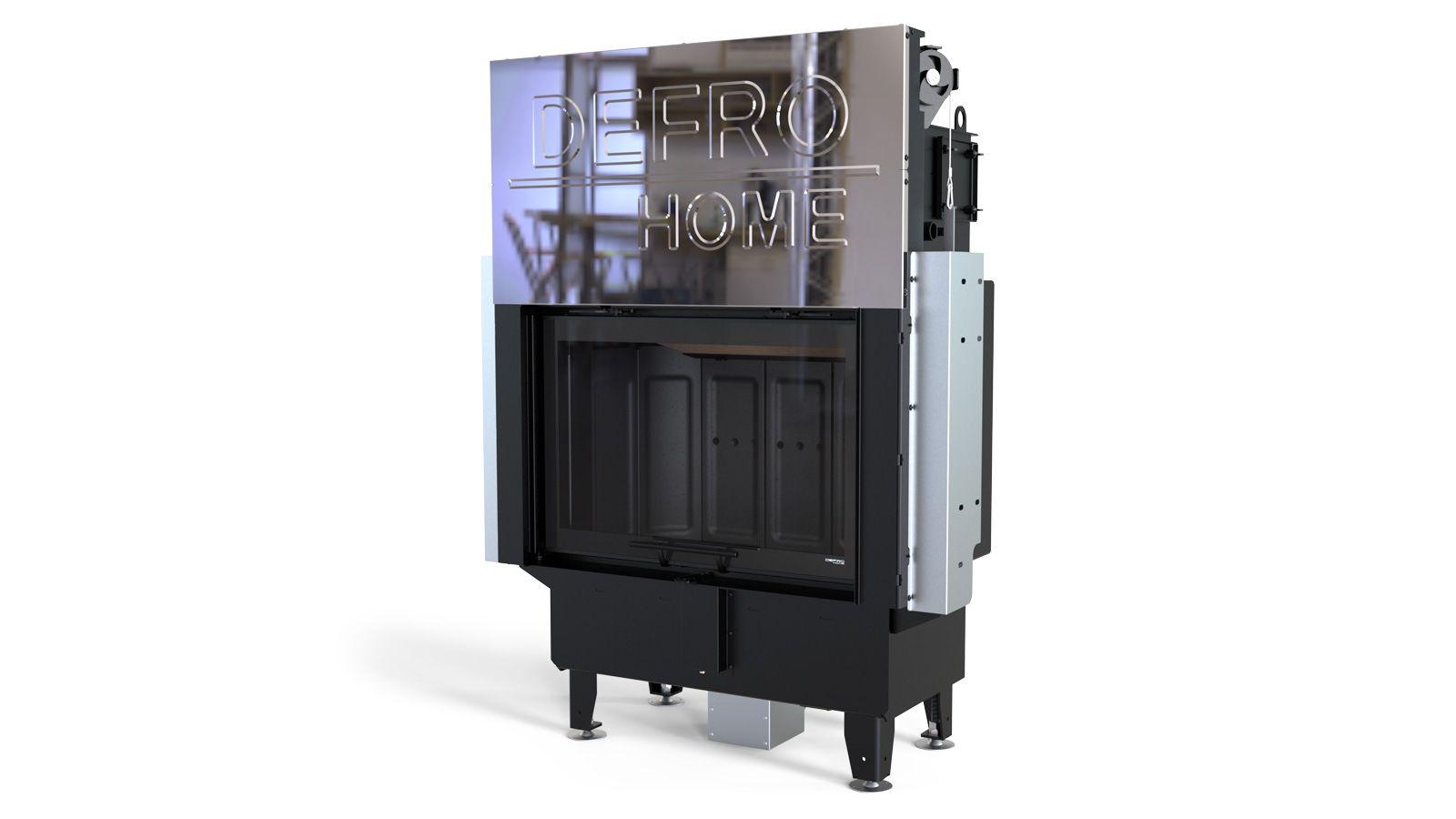

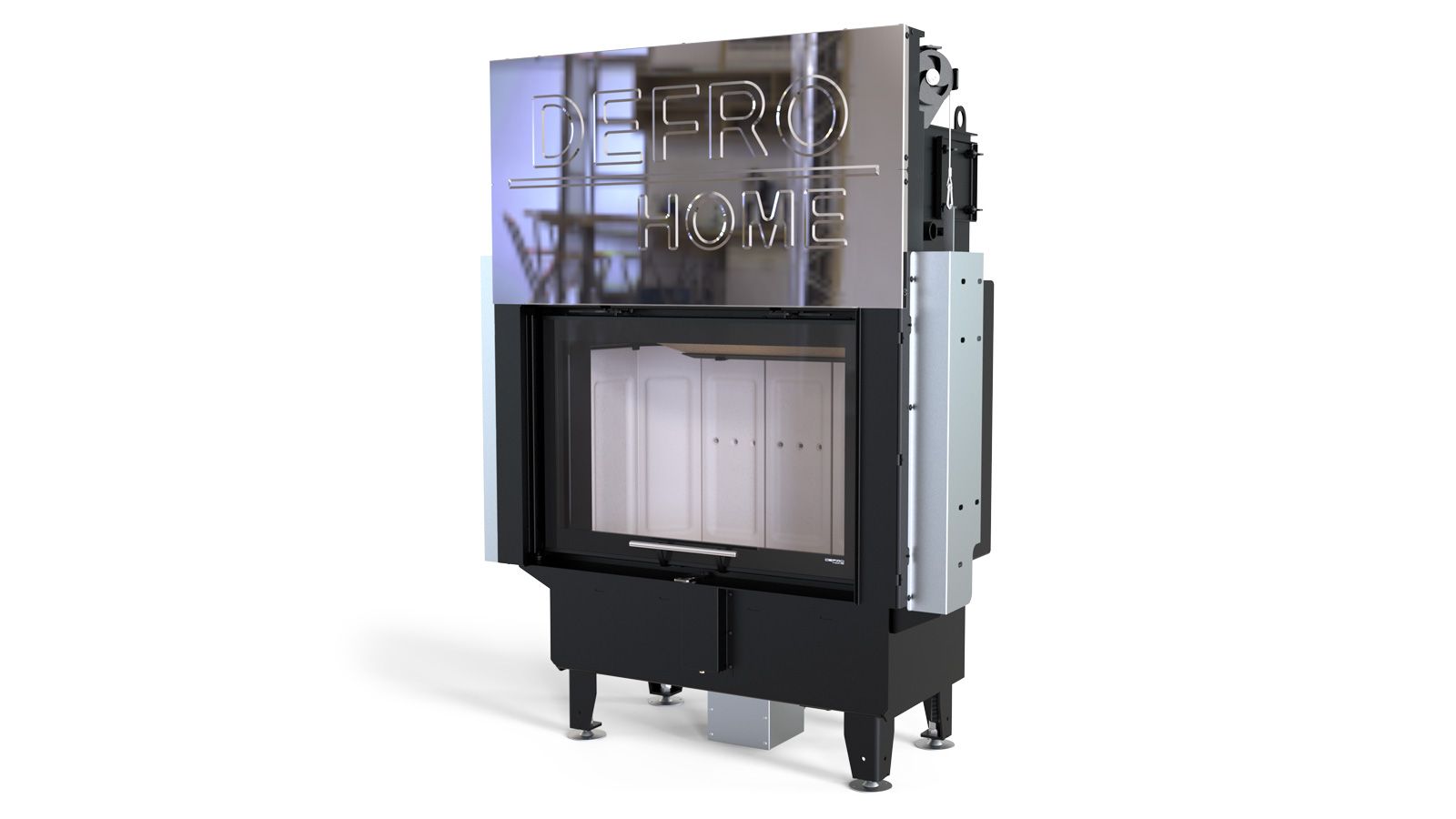

Fireplace insert with a water jacket DEFRO Navi ME G 17kW black

Description

The Navi water cartridge series is designed for intensive smoking. The water jacket technology used in them uses the heat that the fireplace gives us, heating the water and redirecting it to the use of central heating. Due to seasonality of the period of using the fireplace, water cartridges from the Navi series cooperate with other heat sources, such as: boilers, stoves, boilers, solar systems, heat pumps, etc. That is why the Navi series with a water jacket creates economical and ecological contributions of high efficiency. The design of the cartridge based on the water unit on the sides and in the upper part of the cartridge characterized by high efficiency of the water jacket.

Nominal power ~ 17 kW
Power range ~ 13-20 kW
Diameter of the smoke pipe; 200 mm
Efficiency ~ 83.9%
CO emission at 13% O2; 0.0534%
Flue gas temperature; 186 ° C
Area of ​​heated rooms; 50-240 m2
Guarantee; 5 years
Weight ~ 315 kg
Maximum log length; 700 mm
Power from water ~ 9-14 kW
Capacity of the water jacket; 54 l
The diameter of the air intake; 125 mm
