Hajduk Smart XT fireplace insert

Description

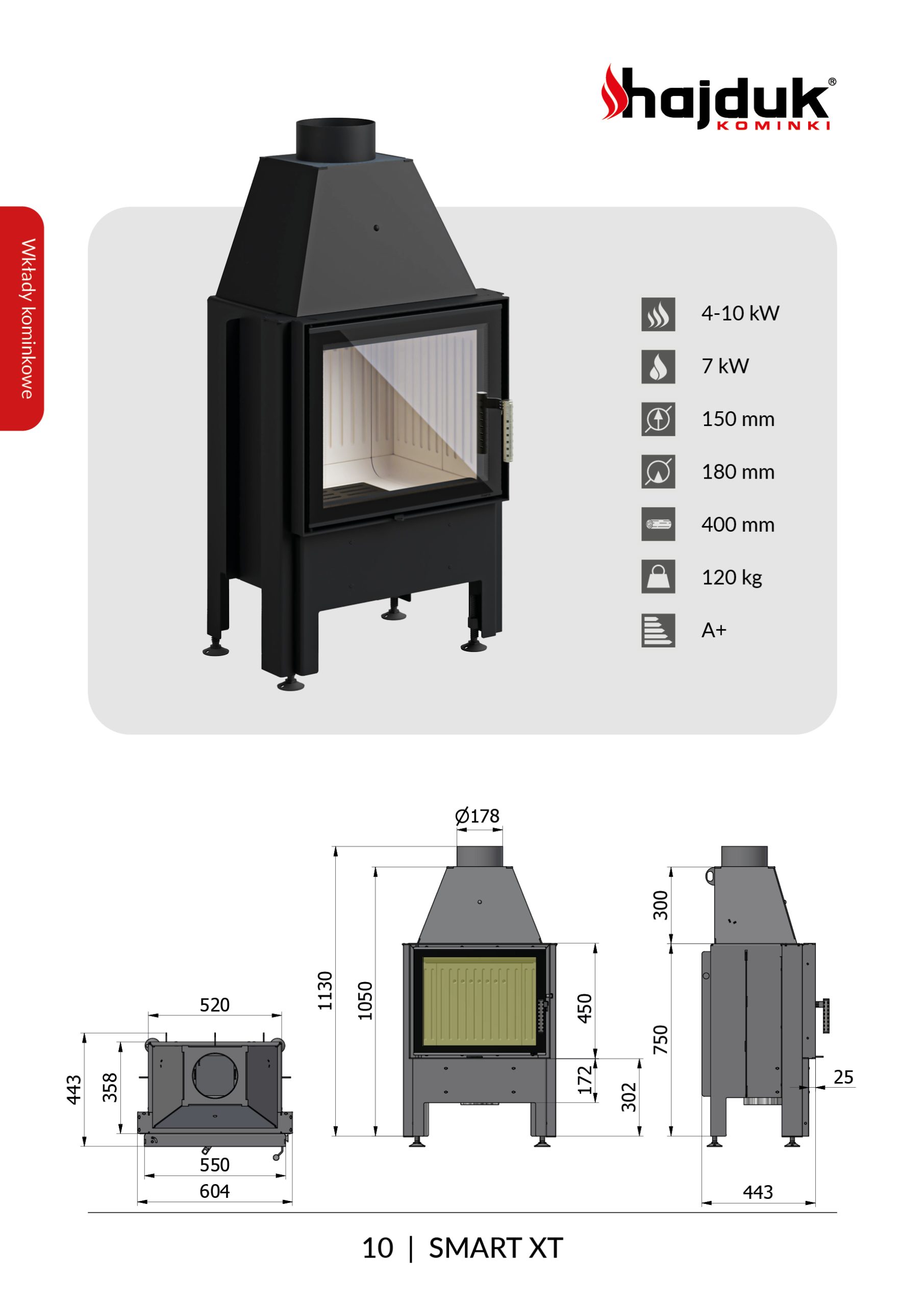

Technical parameters
Name Smart XT
Door size: 550×450 mm
Nominal power: 7 kW
Zakres pracy grzewczej : 4-10 kW
Energy efficiency: A
Average efficiency: 83%
Exhaust temperature: 245 degrees C
Exhaust gas outlet: 180 mm
Air inlet: 150 mm
Fuel type: wood
Polans length: 40 cm
Nominal loading: 3 kg
Fuel consumption: 2 kg/h
Construction: steel and chamotte
Weight: 120 kg

• Advantages of Hajduk fireplace cartridges:
• Modern two -sheep steel -stone structure checked for years – a fireplace for many years
• The inserted flue permanently and solidly combined with the body, without the use of sealing materials and screws, welding works are used, welding is performed in noble gas cover – the welds are of good quality and tight – safety in everyday use
• The structural elements are cut out with 2 D and 3D laser cutters and then processed by numerics and numerically controlled beaters, including bent in a cell in the robot, mechanical elements performed on a modern CNC processing center – precision at Hajduk – a Polish European producer Premium
• Hajduk fireplace inserts are painted on the technological painting line: shot, robot painting and drying – the latest technologies for the highest quality products
• Hajduk fireplace inserts are painted on the technological painting line: shot, robot painting and drying – the latest technologies for the highest quality products
• The flame pipe passing through an extremely high flue of the hearth, for the recovery of additional hot air from exhaust gas – increased heat recovery and saving on a daily basis
• System of supply and distribution of air from the outside.
• Primary air makes it easier to light up the first and subsequent loads of wood, the secondary air ensures economic and ecological combustion – very precise control of the combustion process
• Clear View glass self -cleaning system – helps keep your glass clean
• The bottom of the hearth sufficiently lowered relative to the door – provides space for loading wood and ash – comfort for the user
• Roomy removable ash in the form of a bucket – convenience of use
• The design of the door frame optimized for rigidity, also have an excessive door tilt limiter, the seal placed in the door leaf – long -term trouble -free operation, correct adhesion and tightness of the door when working at very high temperatures
• Railing made of brushed steel in inserts with doors opening up – elegance and modern style
• Railing made of brushed steel in inserts with doors opening up – elegance and modern style
• Radiators on the sides and back of the insert – stiffening the structure and increasing the heat exchange surface – durability and efficiency at an increased level
  Radiators on the sides and back of the insert – stiffening the structure and increasing the heat exchange surface – durability and efficiency at an increased level
• Possibility to choose the most appropriate decorative accessories – individual selection for the interior
• Hajduk fireplace inserts are suitable for houses with recuperation – the effectiveness of modern construction
• Certificates of compliance with the European standard EN 13229, BIMSCHV tightening The second threshold required from 2015 for Germany, Article 15a for Austria. The threshold from 2015 and LRV for Switzerland, entitling to sell Hajduk products throughout Europe

Thanks to many years of experience and proven technological solutions, we provide a 5 -year warranty for traditional inserts, 5 years for inserts with a water jacket for closed central heating systems. and 2 years for custom -made cartridges and cassettes and open fireplaces door.
