Type of fuel recommended seasoned hardwood with a moisture content of ≤20%
Weight (kg) 134,0
CO emission (at 13% O 2) ≤ given in % 0,10
Exhaust gas temperature (℃) 199,0
Max log length (cm) 40
The issue of pollen (dust)(mg/Nm3) 29,0
Compliance with the BImSchV 2 standard Tak
Energy efficiency index EEI 105,40
Type of glazing side
Opening the doorto the side
Material of execution steel
Width(cm) 75,20
Hight (cm) 124,50
Depth (cm) 50,20
Air inlet Yes
The lining of the combustion chamber Yes
Ashpan Yes
Decorative glass type glass Yes
Benefits
The triple-pane fireplace ensures safety of use because it has a side opening system. You don’t have to open all three windows – you can open only one to add wood easily and conveniently.
The body and front of the insert are resistant to high temperatures thanks to the use of high-quality steel.
The door frame is made of a closed profile, which makes it stable and resistant to stresses occurring during operation at high temperatures. Perfect tightness of the insert is guaranteed thanks to solid welds made in a noble gas shield. Steel elements cut with laser cutters and then bent on CNC bending machines
ECOLOGICAL COMBUSTION
NBC is a modern wood fireplace – it meets the Ecodesign requirements and the BImSchV 2 standard, which determines the maximum CO emission. The NBC model meets the Ecodesign standards and the requirements of the restrictive BImSchV 2 standard, which determines the maximum CO emission
MODERN DESIGN
The three-sided NBC fireplace attracts attention with its modern design and aesthetic finish. It impresses with a harmonious vision of fire, giving the interior a unique style. The heat radiates not only frontally but also sideways. Perfect for a living room in both modern and traditional styles.
The fireplace is equipped with a decorative glass, thanks to which it looks elegant and modern. The use of this solution optically enlarges the front of the insert and emphasizes the vision of fire.
CONVENIENT USE
The door of the insert has a neat handle that allows you to easily open and close only selected windows. We changed the typical NBC fireplace mechanism by building in a side hinged door. It is the answer for traditionalists who do not like the doors that open upwards. This does not cause any difficulties in use, as the panes open independently of each other.
The device is additionally equipped with a clean glass system – thanks to the so-called air curtain, the air stream is evenly distributed, sweeps the glass and minimizes the deposition of soot on it. This allows you to maintain the attractive and clean appearance of the glass for a long time.
The fireplace has a specially profiled bottom plate made of TERMOTEC, thanks to which the combustion chamber is deeper and contains more wood, and the logs do not fall onto the glass. The lining of the combustion chamber is available in two variants – light or dark.
MAXIMUM USE OF ENERGY
Dopalanie cząstek opału następuje dzięki deflektorowi, który wydłuża drogę spalin, oraz systemowi dopowietrzenia wtórnego. This process also increases the efficiency of combustion and guarantees better use of energy, and thus minimizes the emission of harmful substances into the atmosphere.
The primary air is supplied to the insert from the outside thanks to the built-in 125 mm air inlet connection. The air inlet connection is located in the floor of the insert. Its regulation takes place by means of a built-in throttle set by one regulator, located below the door, which excludes errors in improper use. The whole mechanism works very quietly and flawlessly.

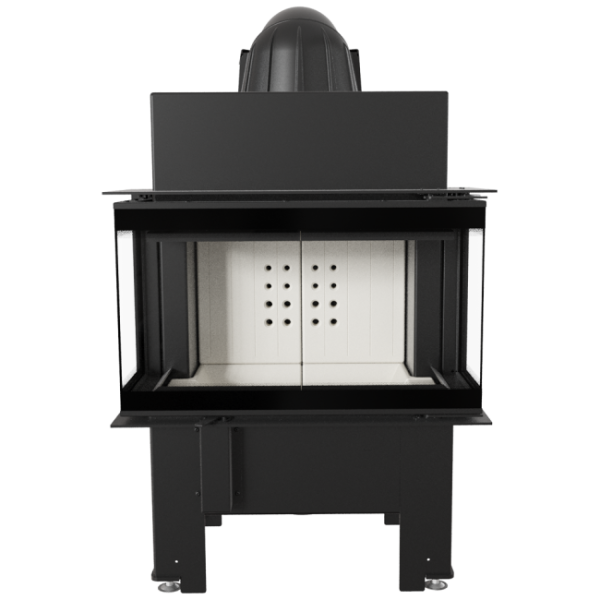

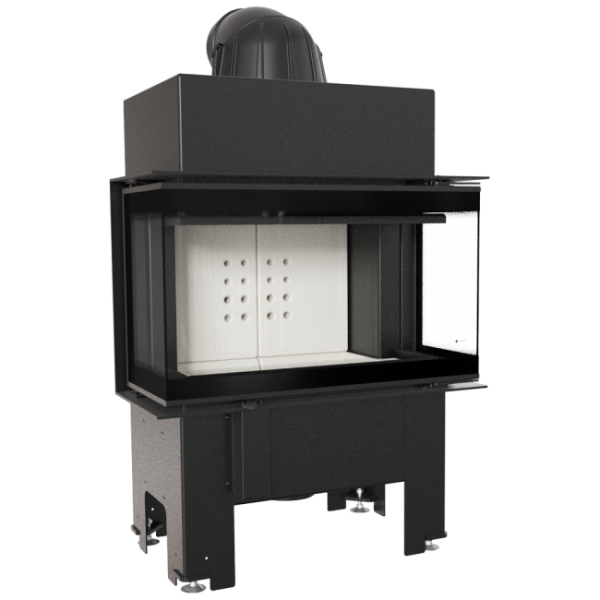

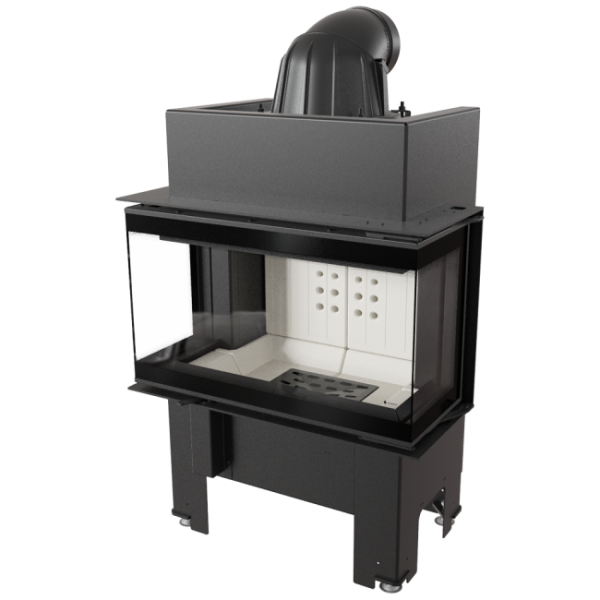

NBC 7 left / right BS with side door opening
9 400,00 zł
Description
NBC 7 left / right BS with side door opening.
Please confirm availability before ordering
Technical data
Benefits
The body and front of the insert are resistant to high temperatures thanks to the use of high-quality steel.
The door frame is made of a closed profile, which makes it stable and resistant to stresses occurring during operation at high temperatures. Perfect tightness of the insert is guaranteed thanks to solid welds made in a noble gas shield. Steel elements cut with laser cutters and then bent on CNC bending machines
ECOLOGICAL COMBUSTION
NBC is a modern wood fireplace – it meets the Ecodesign requirements and the BImSchV 2 standard, which determines the maximum CO emission. The NBC model meets the Ecodesign standards and the requirements of the restrictive BImSchV 2 standard, which determines the maximum CO emission
MODERN DESIGN
The three-sided NBC fireplace attracts attention with its modern design and aesthetic finish. It impresses with a harmonious vision of fire, giving the interior a unique style. The heat radiates not only frontally but also sideways. Perfect for a living room in both modern and traditional styles.
The fireplace is equipped with a decorative glass, thanks to which it looks elegant and modern. The use of this solution optically enlarges the front of the insert and emphasizes the vision of fire.
CONVENIENT USE
The door of the insert has a neat handle that allows you to easily open and close only selected windows. We changed the typical NBC fireplace mechanism by building in a side hinged door. It is the answer for traditionalists who do not like the doors that open upwards. This does not cause any difficulties in use, as the panes open independently of each other.
The device is additionally equipped with a clean glass system – thanks to the so-called air curtain, the air stream is evenly distributed, sweeps the glass and minimizes the deposition of soot on it. This allows you to maintain the attractive and clean appearance of the glass for a long time.
The fireplace has a specially profiled bottom plate made of TERMOTEC, thanks to which the combustion chamber is deeper and contains more wood, and the logs do not fall onto the glass. The lining of the combustion chamber is available in two variants – light or dark.
MAXIMUM USE OF ENERGY
Dopalanie cząstek opału następuje dzięki deflektorowi, który wydłuża drogę spalin, oraz systemowi dopowietrzenia wtórnego. This process also increases the efficiency of combustion and guarantees better use of energy, and thus minimizes the emission of harmful substances into the atmosphere.
The primary air is supplied to the insert from the outside thanks to the built-in 125 mm air inlet connection. The air inlet connection is located in the floor of the insert. Its regulation takes place by means of a built-in throttle set by one regulator, located below the door, which excludes errors in improper use. The whole mechanism works very quietly and flawlessly.
Additional information
Kratki
wood
air
U -trójstronny
three side glass
