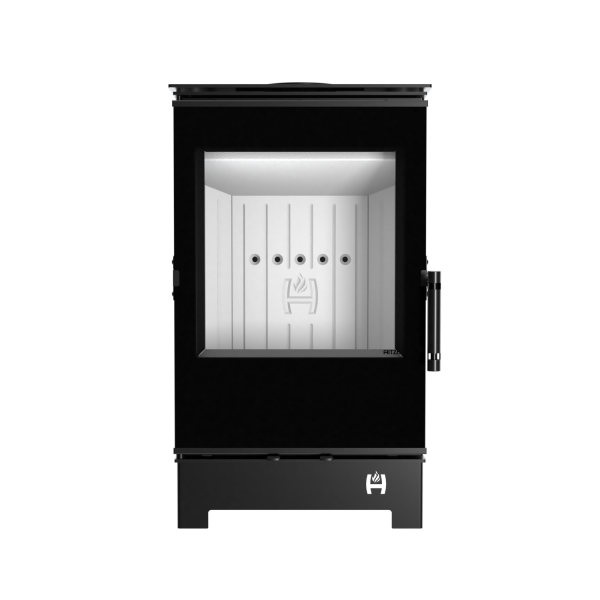

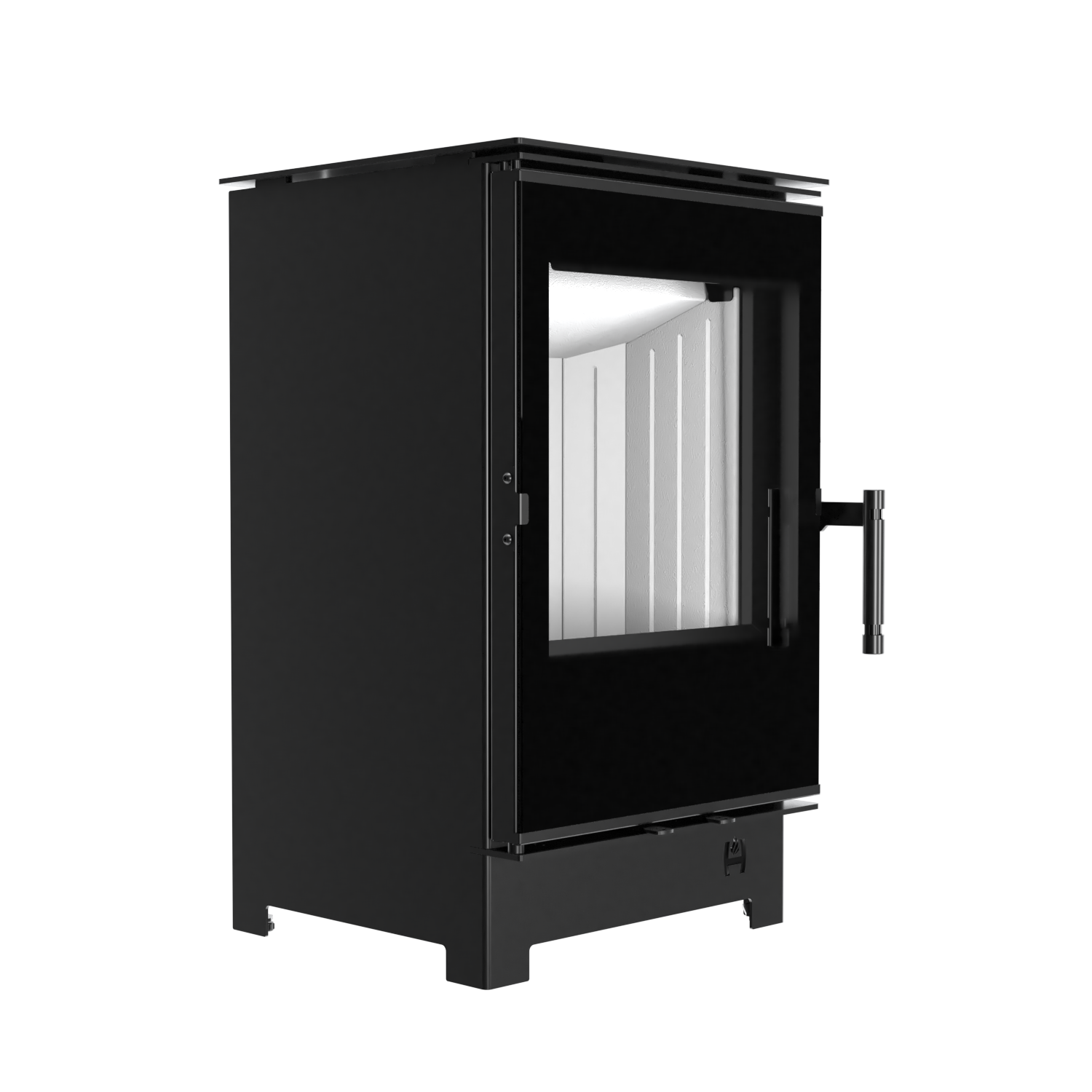

Free-standing stove HITZE LYNX S

The LYNX S free-standing fireplace is a modern, minimalist wood heater, characterized by high thermal efficiency and clean, ecological combustion. The freestanding stove has a simplified external structure and small dimensions. The LYNX S free-standing goat has a closed combustion chamber and the possibility of installing an external air inlet connector, thanks to which it can be installed in houses with mechanical ventilation (recuperation).

LYNX S has two independent air dampers regulating the amount of primary and secondary air, and a three-stage combustion chamber ventilation system. The free-standing fireplace is equipped with a grate hearth. Secondary air openings on the rear wall of the combustion chamber and an air curtain are responsible for ecological burning in the fireplace, which additionally keeps the glass clean while burning.

The free-standing LYNX S fireplace has a removable, cast-iron exhaust outlet, which can be alternately installed on the top or back wall of its body. The base, rear and side walls of the combustion chamber are lined with ACCUCERAM elements. This solution causes that all ash and soot deposits are largely burnt, which has a direct impact on the fact that the fireplace meets the ecodesign requirements with a large margin. The stove door is made of a durable profile, and the fireplace ceramics are equipped with decorative decorations of the DECOR type.

The most important features:

• The free-standing fireplace is equipped with a traditional enlarged ash drawer for easy cleaning.
• Easy lighting thanks to the use of a cast iron grate and a separate throttle regulating the amount of primary air.
• The freestanding stove uses steel elements bent in many planes, thanks to which its structure is characterized by increased stiffness.
• Nominal power of 6.5 kW and small dimensions make the goat ideally suited to small and medium-sized rooms.

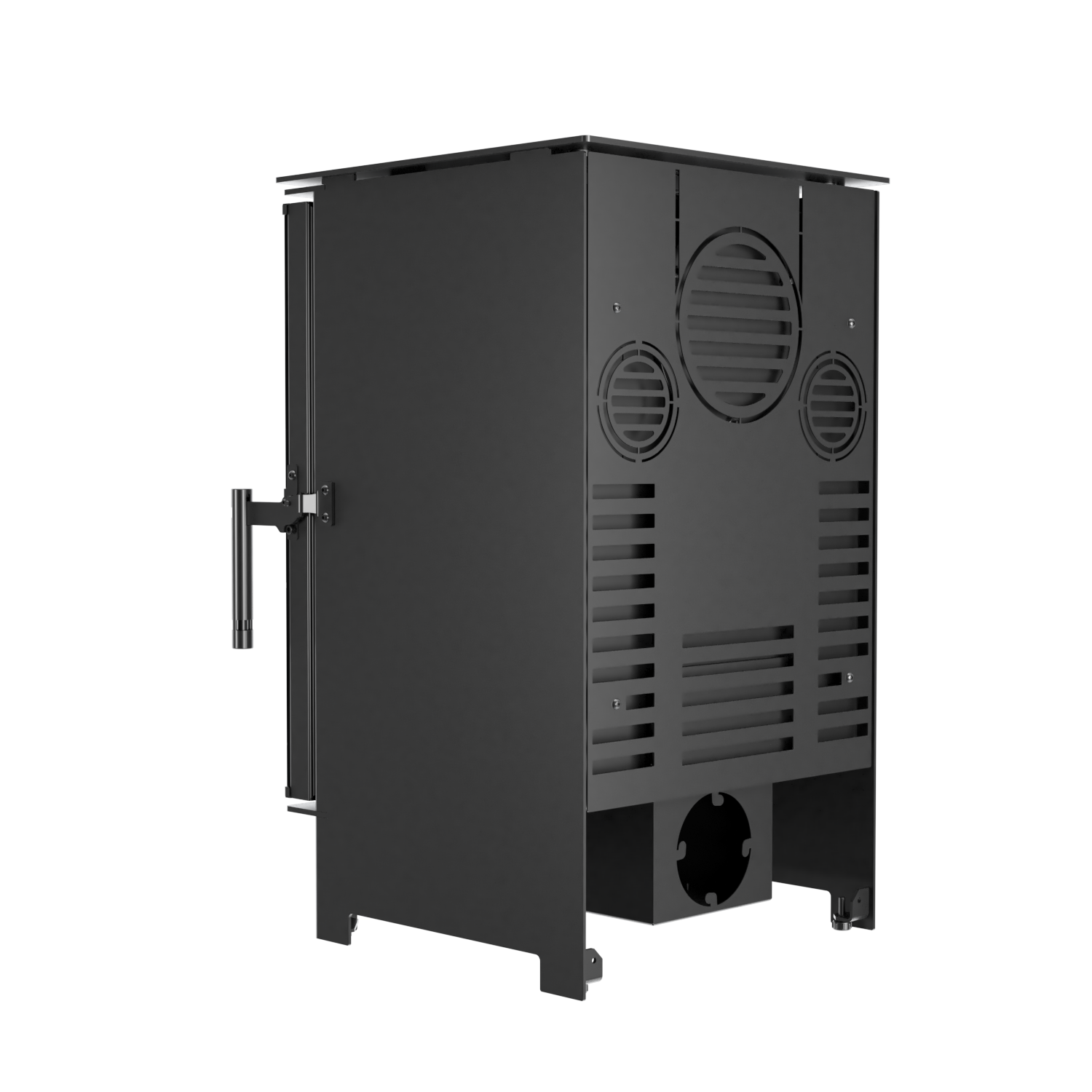

• LYNX S can be connected to the flue via the exhaust outlet located at the top or rear of the fireplace.
• The rear exhaust outlet allows the upper part of the body to function as a heating plate.
• The free-standing stove is made of P265GH boiler steel.
• The free-standing fireplace has an air guide, thanks to which the glass remains clean while burning.
• LYNX S is a goat in which ceramic glass, polished on both sides, is used, maintaining transparency at temperatures up to 800 ° C.
• Decoratively painted ceramics of the DECOR type.
• The ceramic deflector with the accumulative lining of the combustion chamber ensures ecological burning.
• Each freestanding furnace from the LYNX series has been made with the use of advanced CNC machines such as: 2D laser, 3D laser or press brakes.
• The free-standing fireplace is produced with the use of welding robots.
• The free-standing fireplace meets the requirements of BlmSchV II (Germany), 15a B-VG (Austria) and Ecodesign.
