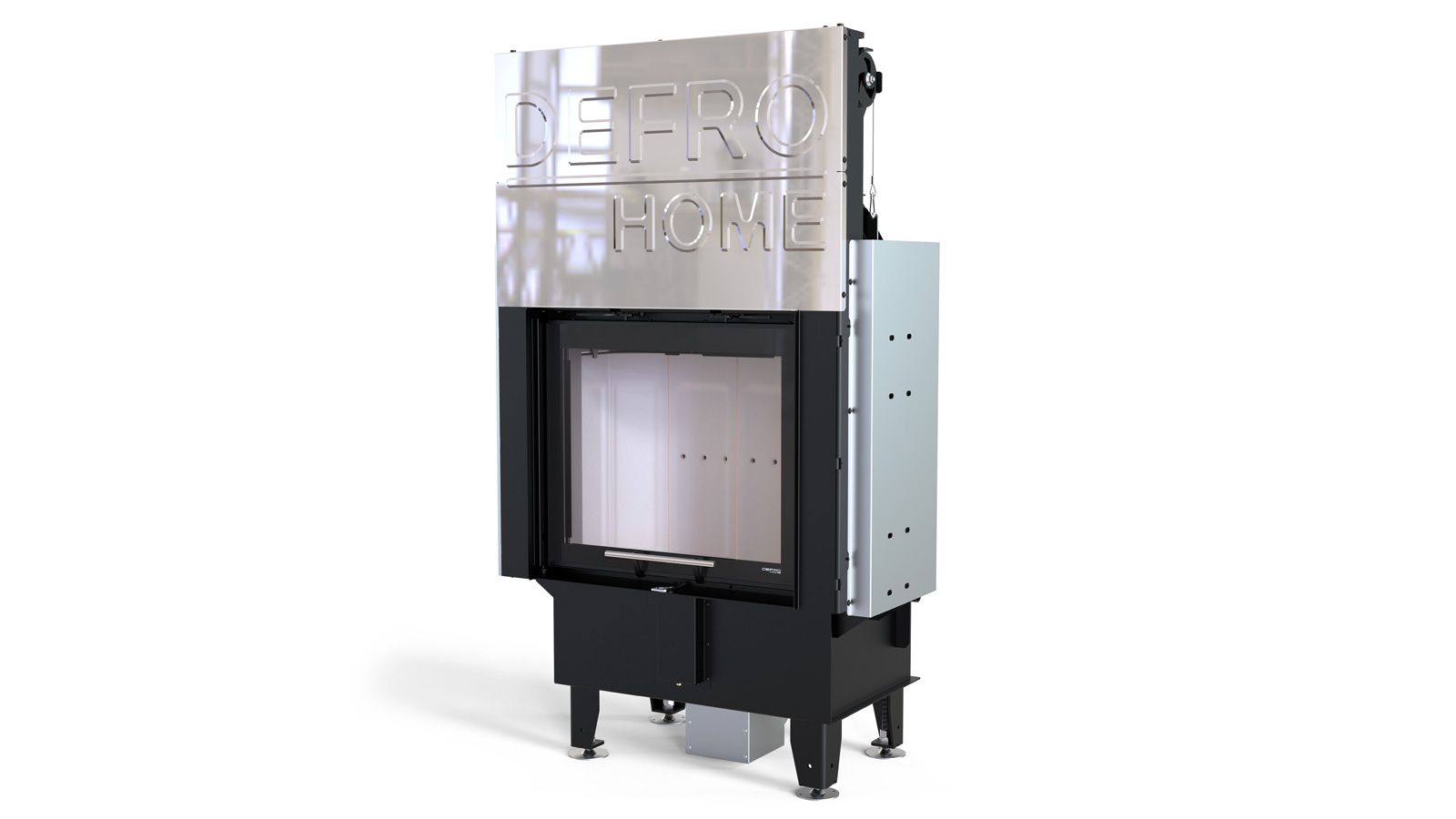

Fireplace insert DEFRO HOME INTRA SM G

Description

The series of inlays with raised Perfect Up glazing fits perfectly into modern style. Thanks to the large glass and finish, Black Line fits perfectly into open spaces. Fireplace inserts from the DEFRO HOME INTRA G series will successfully warm the whole house. Modern design and airtight hearth allow you to enjoy its possibilities in passive and recuperative houses. Proprietary solutions guarantee energy saving and trouble-free operation of the device ..

Nominal power: 10 kW
Energy efficiency class: A
Flue diameter: 200 mm
Efficiency: 80.1%
Heated area: 45-145 m2
CO emissions at 13% O2: 0.07
Flue gas temperature: 267 ° C
Chimney draft: 12 ± 2 Pa
Maximum log length: 500 mm
Air intake diameter: 125 mm
Warranty: 5 years
Weight: ~ 245 kg
Additional information: The area of ​​heated rooms was estimated for a unit heat demand of q = 70 W / m2 and rooms with a standard height of 2.5 m. The given values ​​have been calculated for the minimum power of 30% and maximum power of 100%. Leg adjustment range from 0 to 100 mm.
